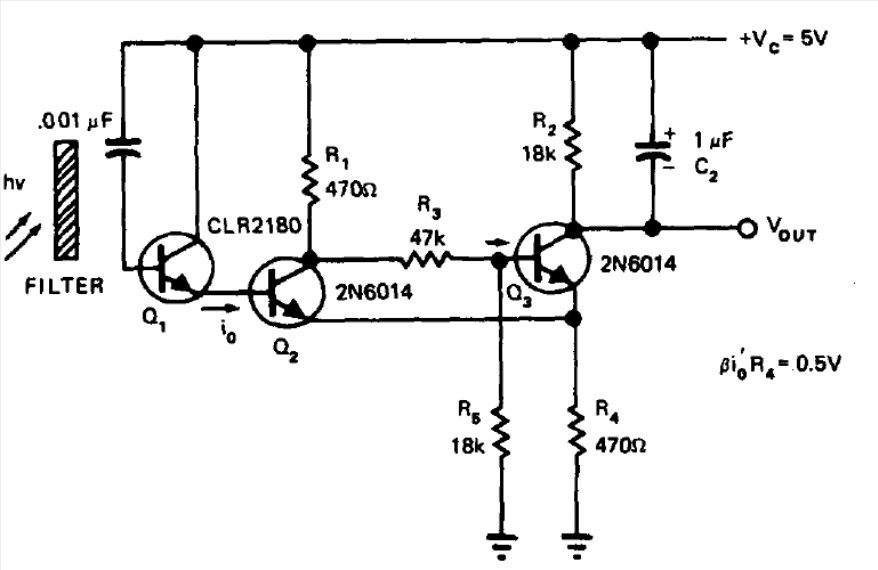

We got this circuit in an old publication from 1978. The circuit uses a phototransistor and an infrared filter. The NPN transistors can be the BC548 and the phototransistor of any type. The output is compatible with TTL logic.
