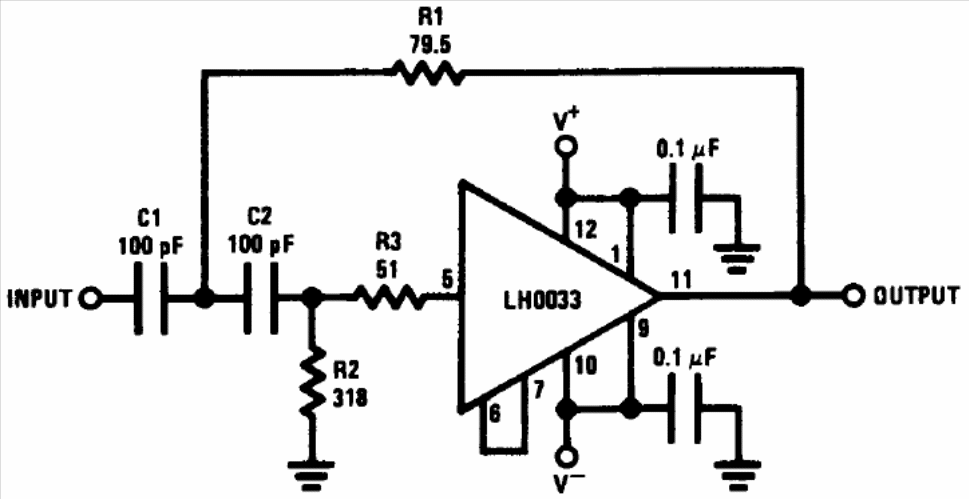

The indicated circuit uses an unusual buffer from National Semiconductor. The frequency is given by resistors R1 and R2 as well as capacitors C1 and C2.
| Clique na imagem para ampliar |
High Pass Filter with Buffer (CB14337E)
- Details
- Written by: Newton C. Braga
