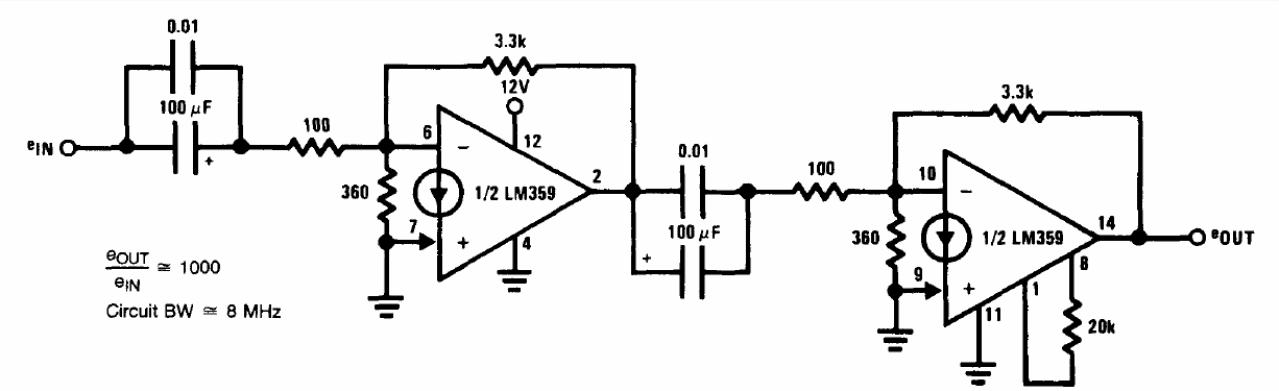

The LM359 is a Norton amplifier not common today. The presented configuration has 1000 voltage gain. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor.
| Clique na imagem para ampliar |
LM359 High-Gain General-Purpose Amplifier (CB14372E)
- Details
- Written by: Newton C. Braga
