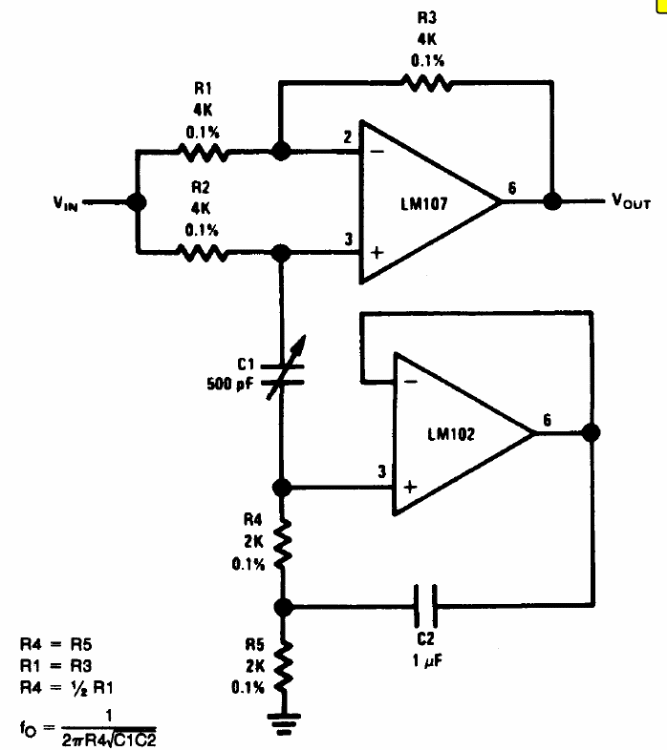

The circuit shown is from the 1994 Linear Applications Handbook from National Semiconductor. The components can be calculated as a function of frequency using the formulas given next to the diagram. The power supply must be symmetrical.
