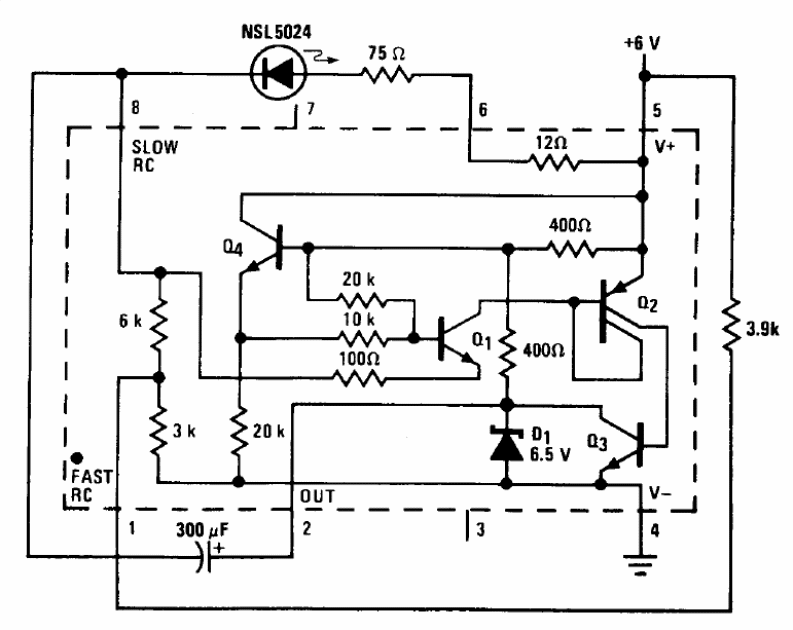

The presented circuit uses the National Semiconductor's LM3909, an oscillator that operates with very low voltages, starting at 1.2 V. The circuit is for 6 V supply and uses a common LED. The circuit is from National technical documentation.
