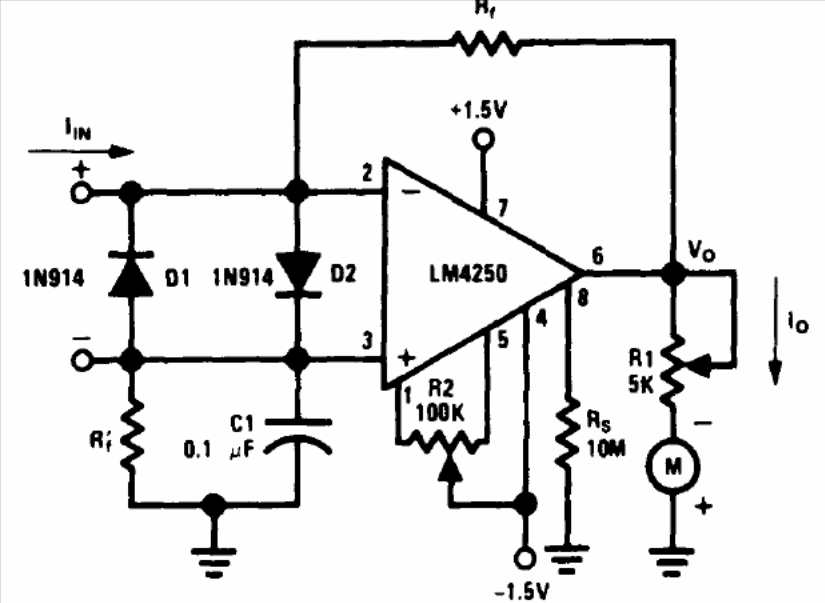

The circuit shown can measure currents less than 1 uA and is powered by two 1.5 V batteries in a simple symmetrical source. The circuit is suggested by National Semiconductor in its 1994 Linar Applications Handbook. The instrument is 100 to 200 uA full-scale.
