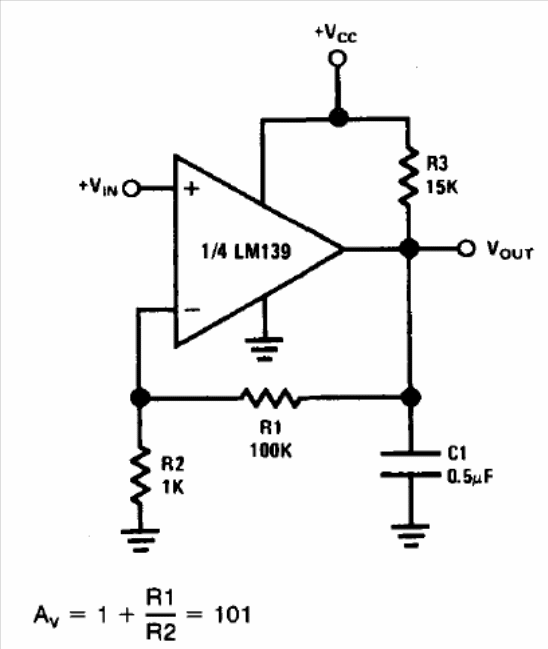

The circuit below shows how to use an LM139 comparator or series equivalent as an amplifier. The circuit is from National Semiconductor's Linear Applications Handbook, requiring no symmetrical power supply.
Non-Inverter Amplifier LM139 (CB14242E)
- Details
- Written by: Newton C. Braga
