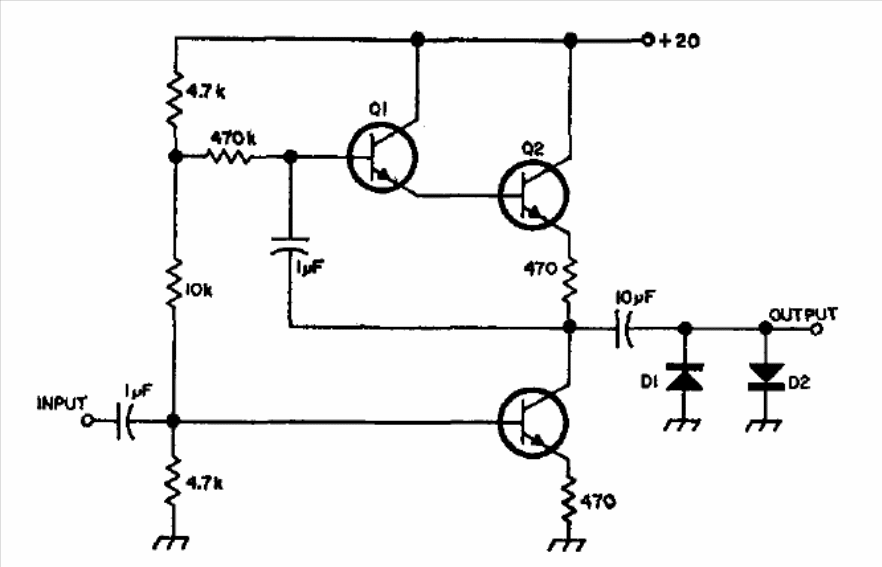

Transistorized Amplifier (CB13771E)

Details
Written by: Newton C. Braga



We found this configuration in a 1974 publication. Transistors can be replaced with equivalents such as 2N2222. The circuit has a dynamic range of 60 dB.




| Clique na imagem para ampliar |
