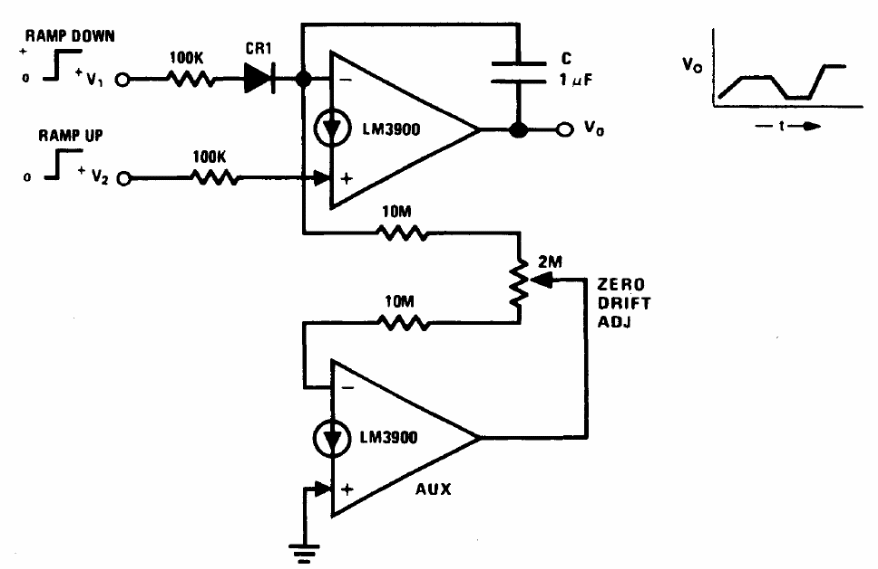

The circuit whose characteristics are given in the graph uses two transconductance operational amplifiers from an LM3900. The circuit is suggested by National Semiconductor in its 1994 Linear Applications Handbook.
| Clique na imagem para ampliar |
Ramp and Hold Circuit (CB14217E)
- Details
- Written by: Newton C. Braga
