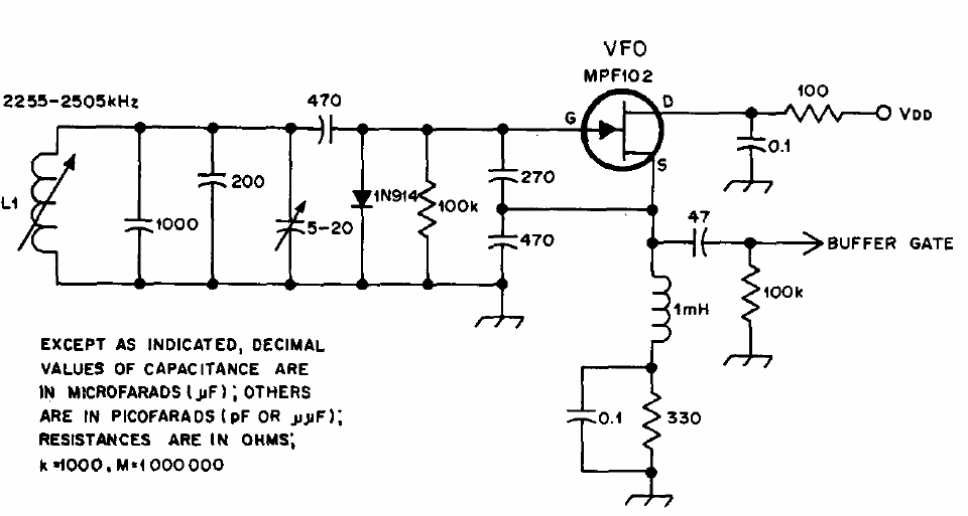

This circuit was found in a documentation for radio amateurs from 1978. The resonant circuit determines the frequency range and can be changed. The 160 m radio amateurs range operates at a frequency of around 1.8 MHz. The circuit can be used as the basis for a higher power transmitter.
