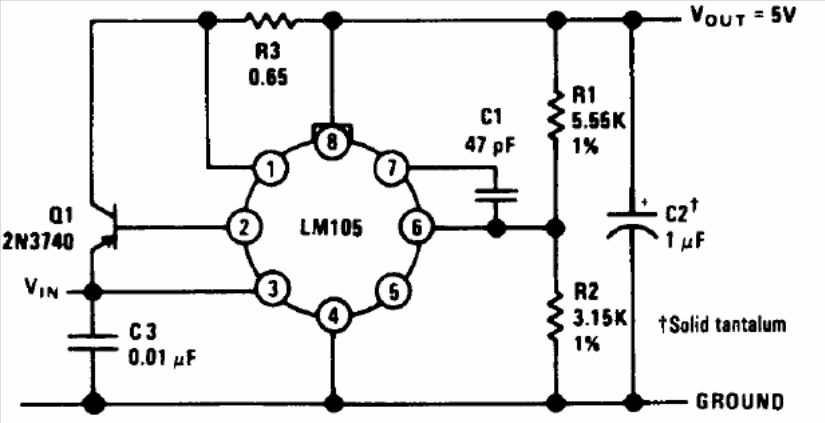

The LM105 integrated circuit consists of a voltage regulator integrated in a metallic enclosure. The circuit presented is a typical application of National's Linear Applications Handbook. The precision of the resistors is to obtain exactly 5 V of output.
