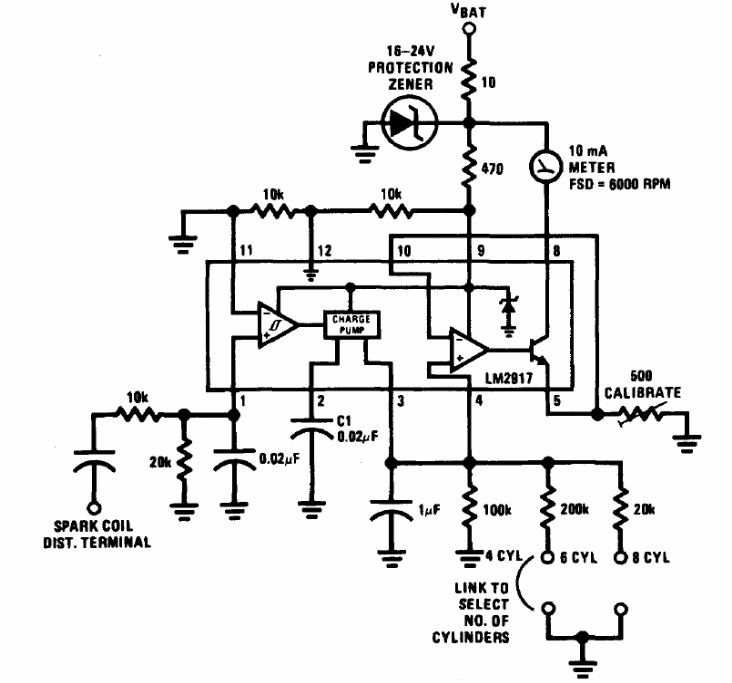

We found this circuit in the National Semiconductor Linear Applications Handbook of 1994. The circuit uses an integrated LM2907 and connected to the ignition coil terminal that goes to the distributor.
| Clique na imagem para ampliar |
Automotive Tachometer LM2907 (CB14296E)
- Details
- Written by: Newton C. Braga
