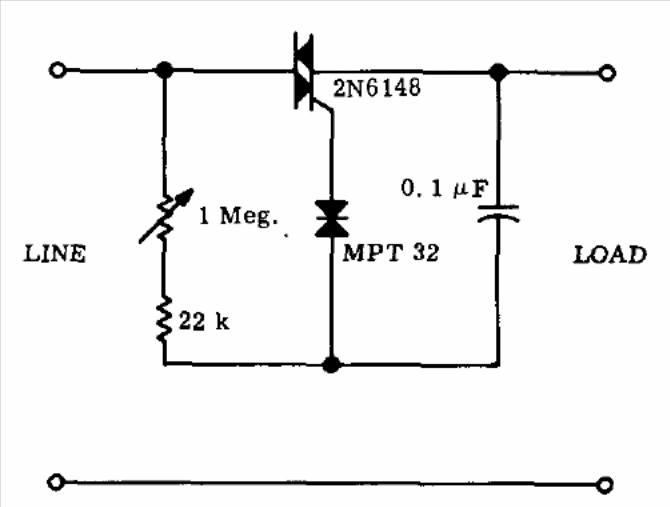

This circuit is from the 1971 Motorola SCR Power Control Fundamentals. The circuit can be made with any triac and the Diac can be equivalent. The voltage can be 220 V. The triac must be mounted on a heat sink according to the dissipated power. MPT is an SBS or diac.
