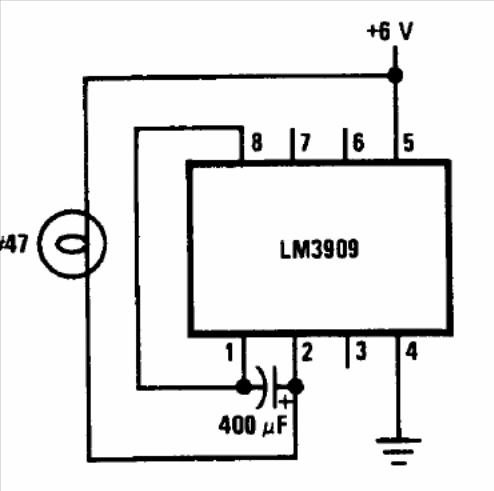

In the figure we have the way to use the low consumption flasher LM3909 with 6 V supply to excite a small incandescent lamp of the same voltage. The circuit is suggested by National Semiconductor in technical documentation on the component.
6 V Flasher LM3909 IR5642S CB14277E (CB14277E)
