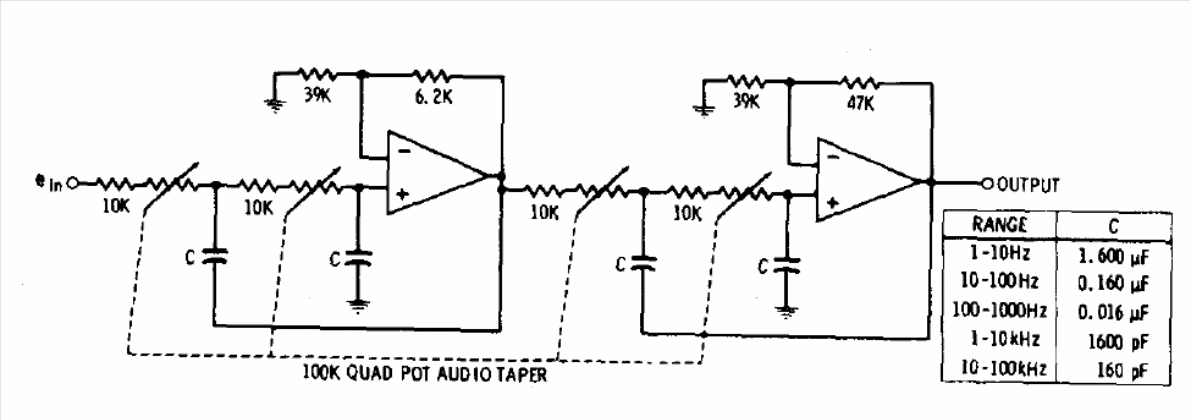

The diagram shown was found in a 1975 active filter manual. The tuned frequency range depends on the capacitors according to the table given next to the diagram. The circuit must be powered by a symmetrical source and other operational ones can be used.
