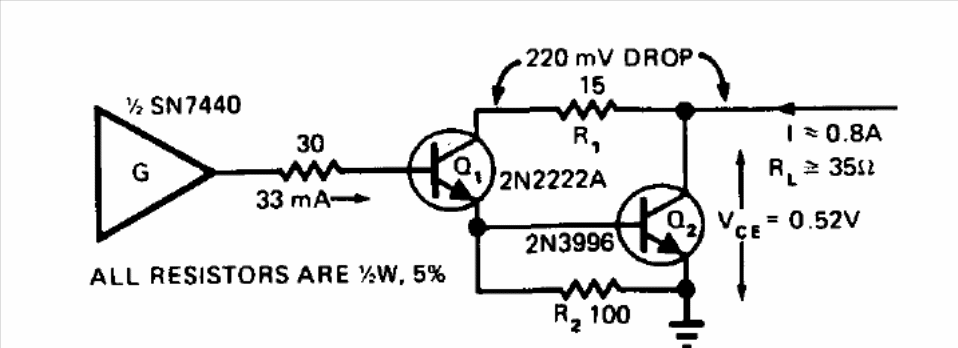

The circuit shown in the figure has a very high switching speed and can work with currents up to 800 mA. Q2 can be a TIP31 or other power transistor depending on the load. The circuit is from a documentation from the 70s.
