Micro Amplifier LM3909 (CB14295E)

Details: Written by: Newton C. Braga

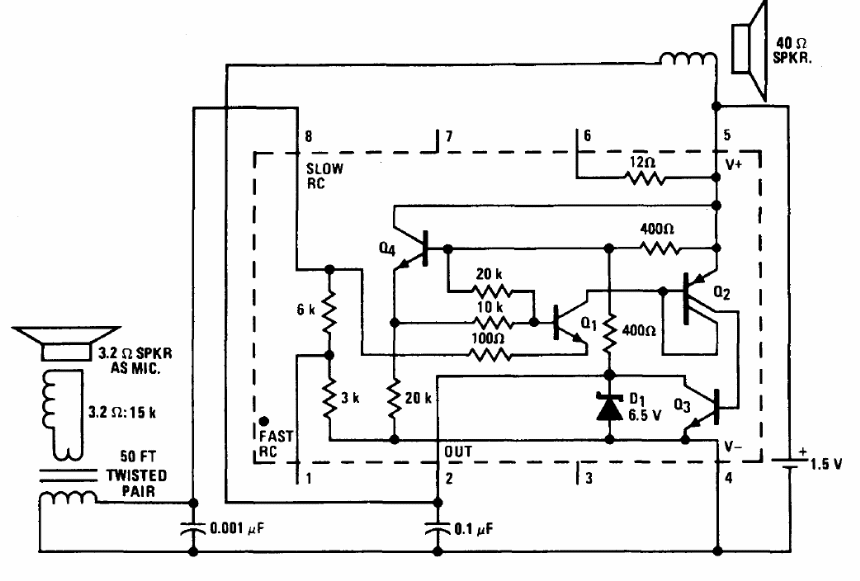

We found this micro amplifier in a technical documentation from National Semiconductor. The circuit can be used on an experimental phone, being powered even by alternative power sources.

| Clique na imagem para ampliar |
