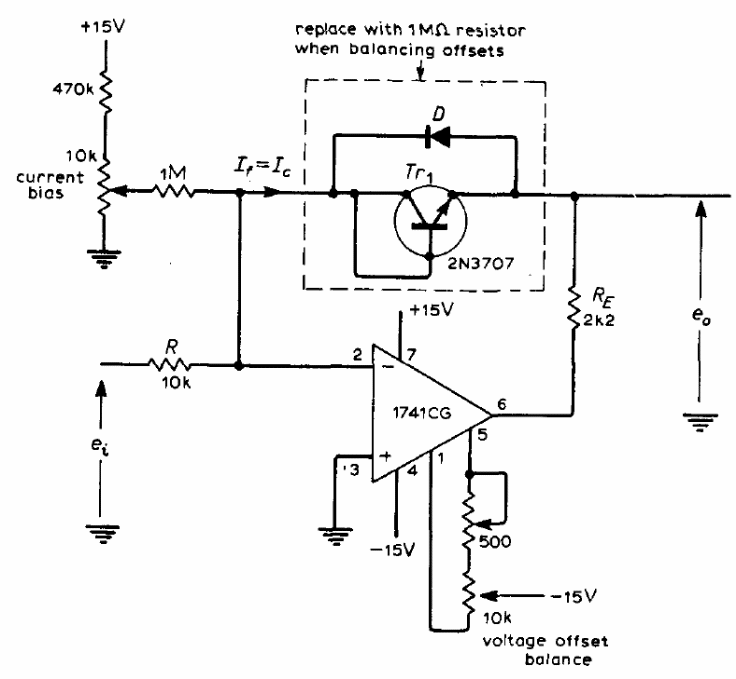

We found this circuit in a publication from the 1970s. The circuit has a logarithmic gain response. The transistor can be the BC547 and the general-purpose diode can be a 1N4148. The power supply must be symmetrical.
