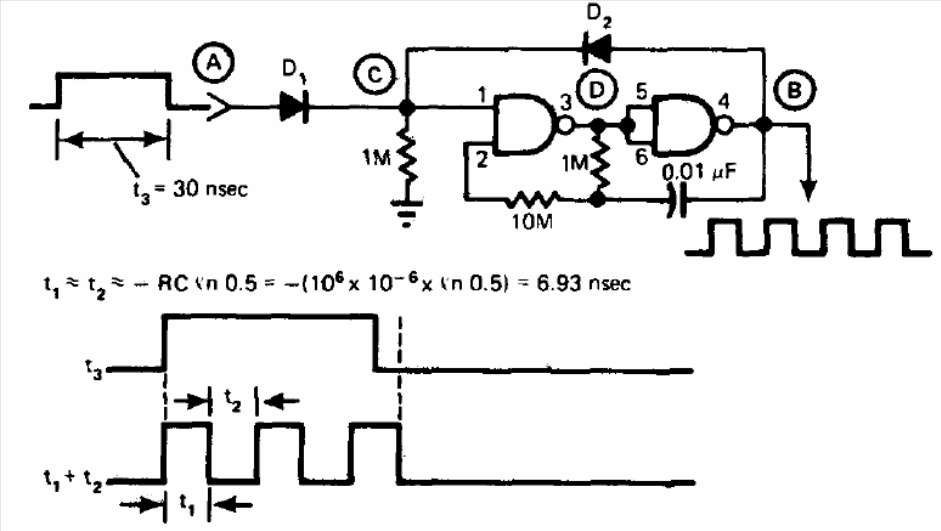

The purpose of this interesting circuit found in a 1977 documentation is to complete the last cycle of a triggered oscillator. The time diagrams for the circuit are shown in the figure and the gates depend on the used logic.
