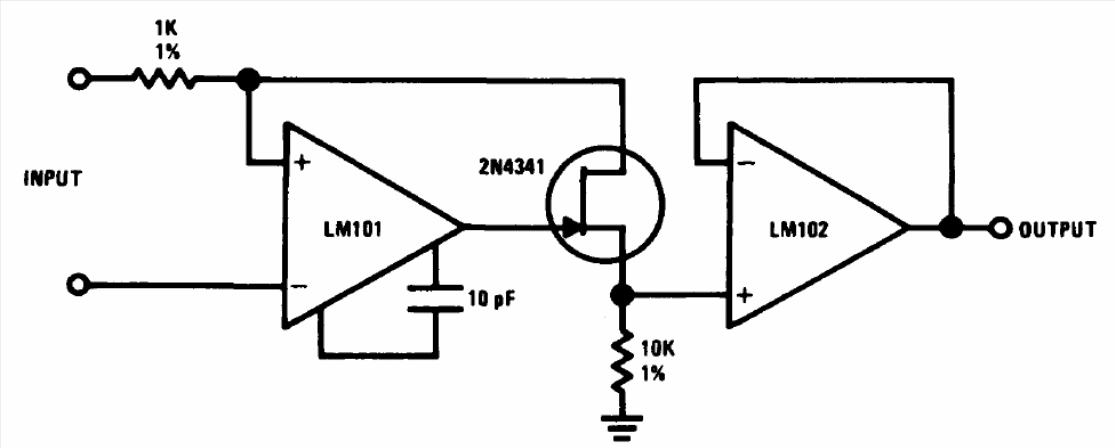

We found this circuit in the Linear Applications Handbook by National Semiconductor. The circuit can be used with other operational amplifiers and the FET can be the BF245; The power supply must be symmetrical.
| Clique na imagem para ampliar |
Isolation Amplifier (CB14147E)
- Details
- Written by: Newton C. Braga
