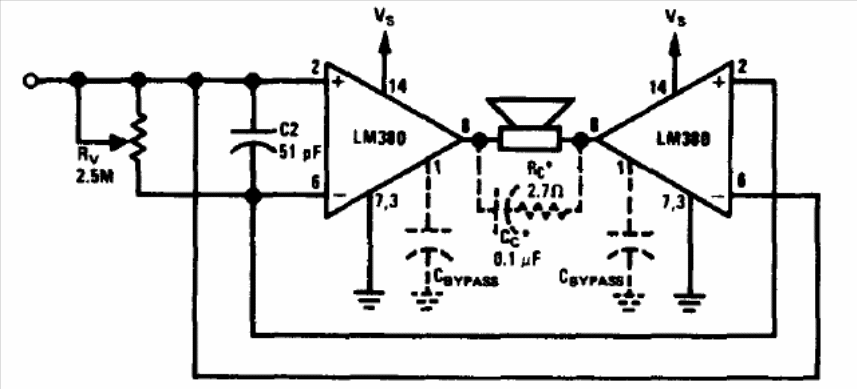

This amplifier can be powered with voltages from 9 to 14 V providing 7W of maximum power under a 8 ohms load. The circuit is from the 1994 National Semiconductor Linear Applications Handbook. The volume control is of the common mode type.
