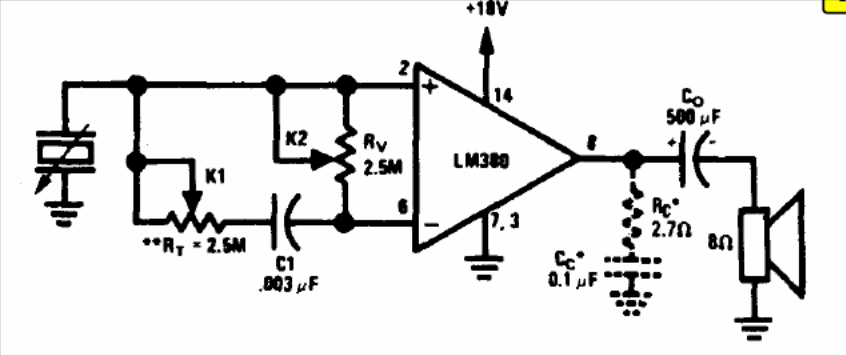

This circuit was found in the 1994 National Semiconductor Linear Applications Handbook. The circuit provides something in a 2 W range output and has common mode tone and volume controls.
| Clique na imagem para ampliar |
2 W LM380 Amplifier with Control and Common Mode (CB14166E)
- Details
- Written by: Newton C. Braga
