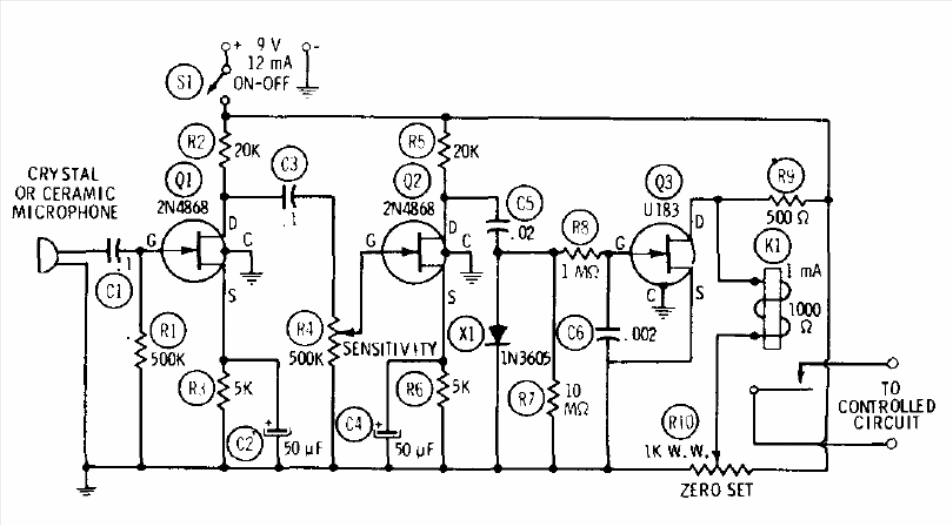

This circuit is from an old American documentation, from 1977, but it can be implemented with more modern FETs like BF245 or MPF102. The relay is of the high sensitivity reed type with voltage according to that used in the supply. The microphone cable must be shielded.
| Clique na imagem para ampliar |
