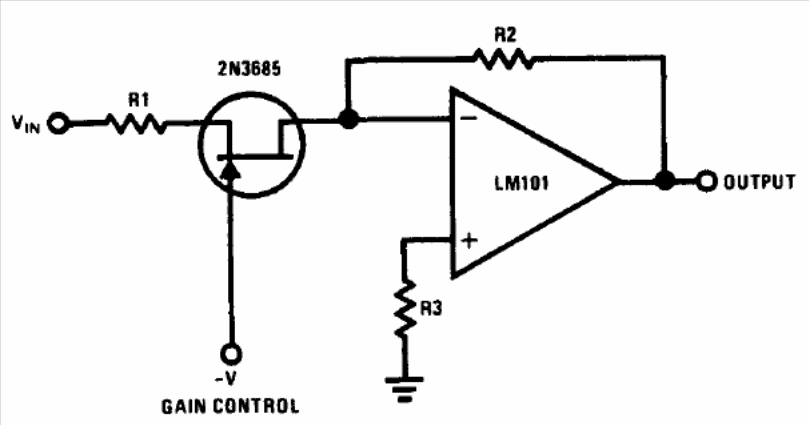

The circuit shown in the figure was suggested by National Semiconductor in its 1994 Linear Applications Handbook. The operational amplifier admits an equivalent and the FET can be anyone with an Rds less than 800 ohms. The power supply must be symmetrical.
