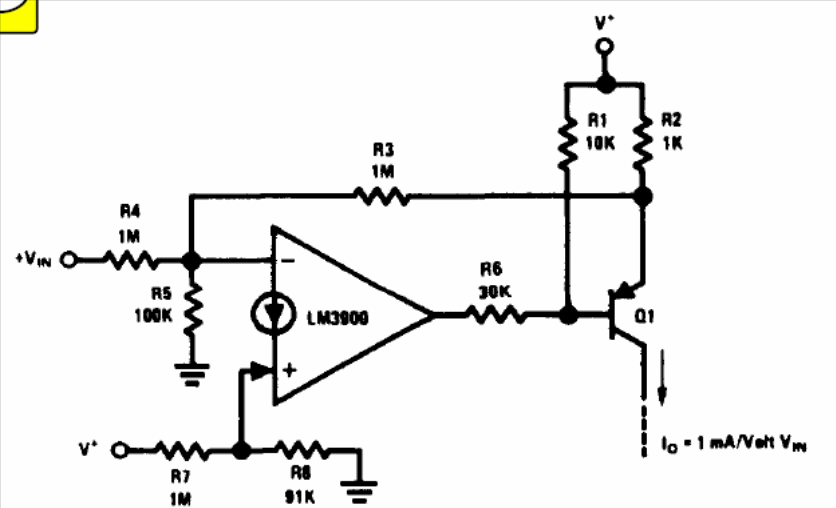

The circuit shown is from National Semiconductor's Linear Applications Handbook. The LM3900 is a transconductance operational amplifier. Transistor Q1 can be a BC558 for the 1 mA current, given as an example.
| Clique na imagem para ampliar |
LM3900 Voltage Controlled Current Source (CB14211E)
- Details
- Written by: Newton C. Braga
