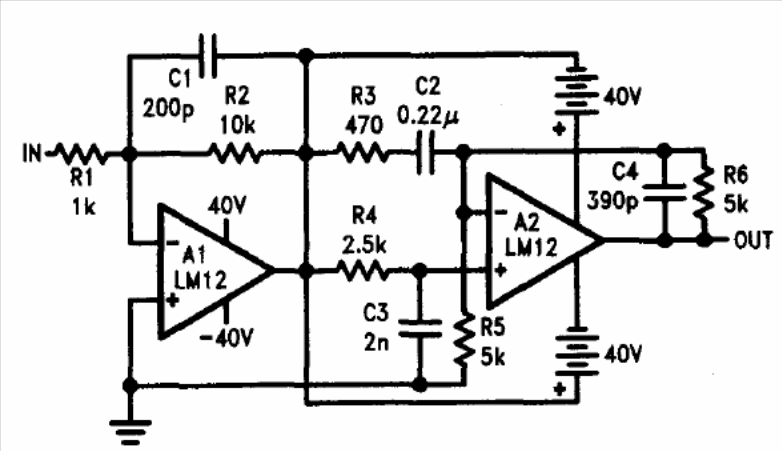

With the configuration shown, the output capacity of the LM12 can be doubled, which is 4 A. The circuit is from the Linear Applications Handbook of the National Semiconductor of 1994.
| Clique na imagem para ampliar |
Cascading the LM12 (CB14393E)
- Details
- Written by: Newton C. Braga
