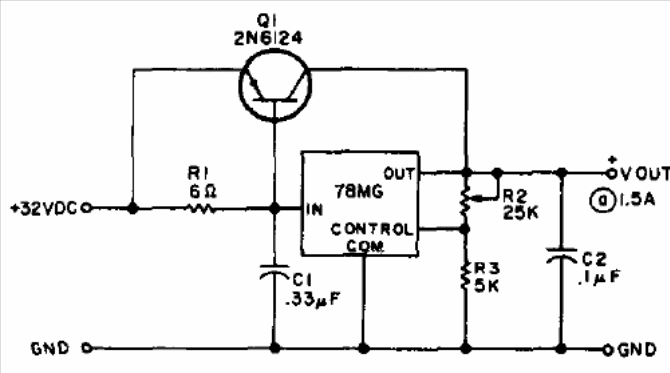

This circuit is from a technical publication on voltage regulators from 1977. The transistor can be the TIP42 mounted on a good heat radiator. The integrated circuit is not very easy to obtain today, being the critical element of the assembly.
| Clique na imagem para ampliar |
