Fast Recovery 741 Integrator (CB13749E)

Details
Written by: Newton C. Braga

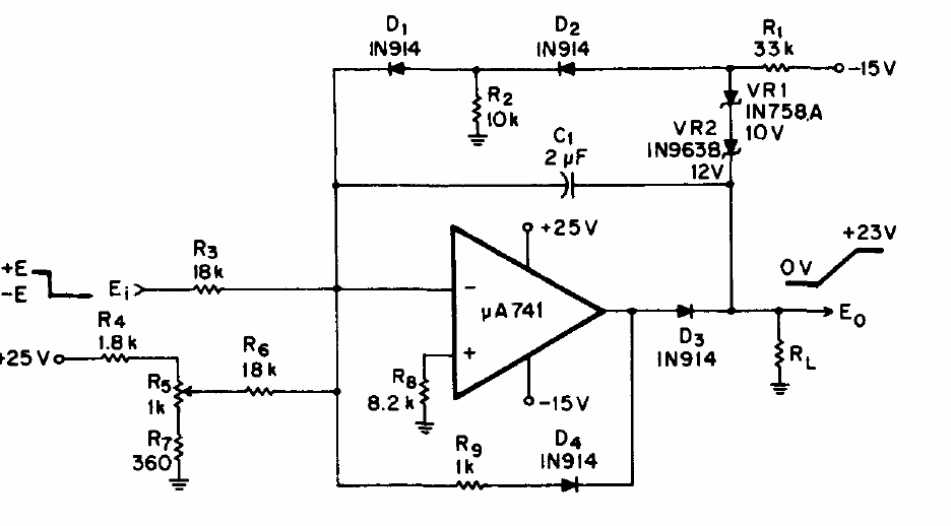

This circuit was obtained in a 1970 engineering documentation. The operational is the 741, but other operational ones can be used. The power supply must be symmetrical.
