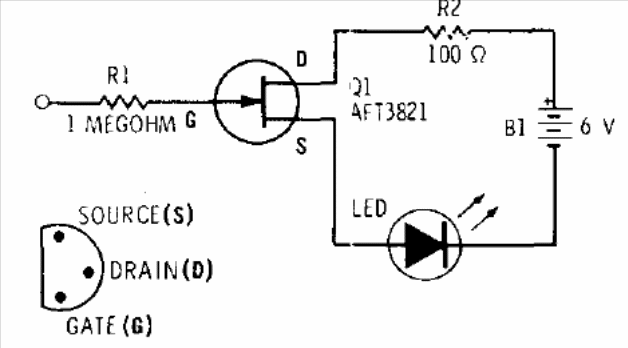

This very sensitive circuit works almost like an electroscope. The FET can be the BF245 and it will be convenient to have a ground connection on the battery negative for logical tests. The circuit is from an 1974 Radio Shack documentation.
Tester with FET (CB13783E)
- Details
- Written by: Newton C. Braga
