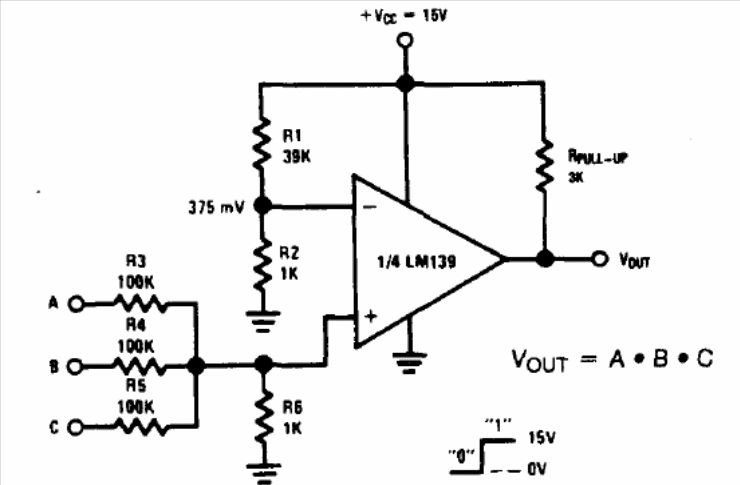

The circuit shown is an AND gate with three inputs using a comparator of the four existing in an LM139. The circuit is from National Semiconductor's Linear Applications Handbook. The power supply does not have to be symmetrical.
