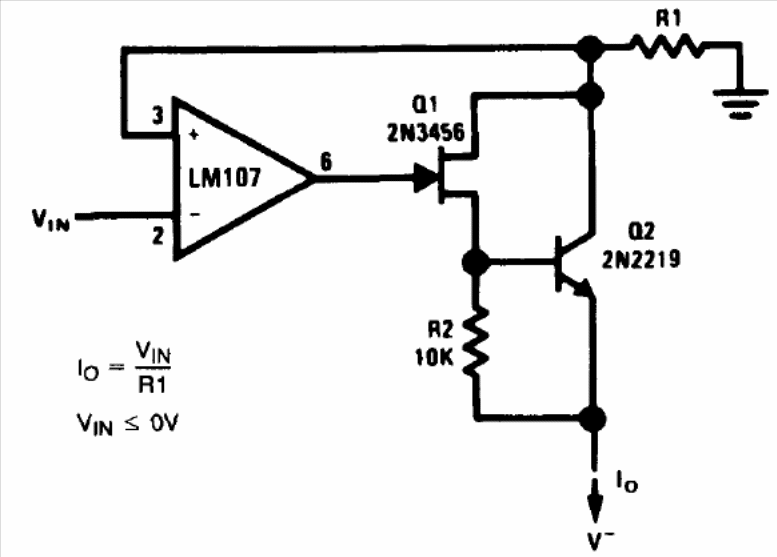

This circuit provides a current given by the components calculated according to the formula next to the diagram. The maximum current depends on Q2 which is in the order of 200 mA for 2N2219 and 500 mA for a BD136. The FET can be the BF245. The circuit applies to other operational ones.
