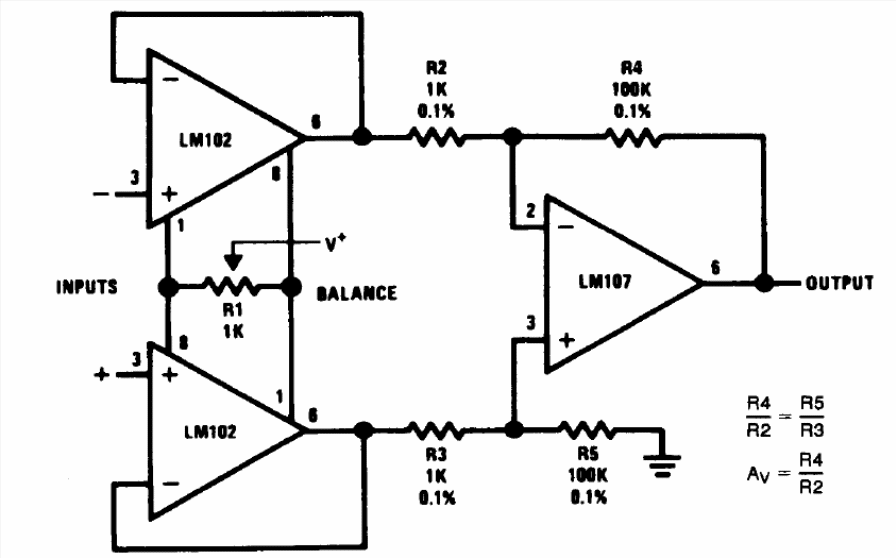

The presented differential amplifier, indicated for instrumentation, was obtained in the 1994 Linear Applications Handbook from National Semiconductor. The circuit can be implemented with more modern operating systems, including using FETs and the power supply must be symmetrical.
| Clique na imagem para ampliar |
