Two Transistors Amplifier Stage (CB14026E)

Details
Written by: Newton C. Braga

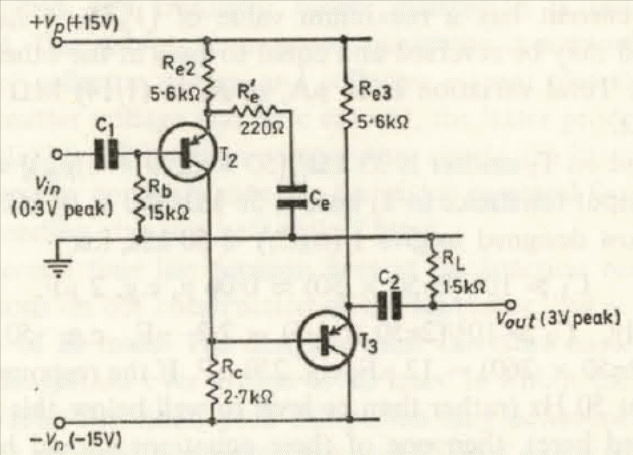

This circuit is from an English technical documentation and can be implemented with BC558 transistors or, with polarity inversion, with BC548 transistors. The circuit has a voltage gain 10.
