Active Middle Control (CB13927E)

Details
Written by: Newton C. Braga

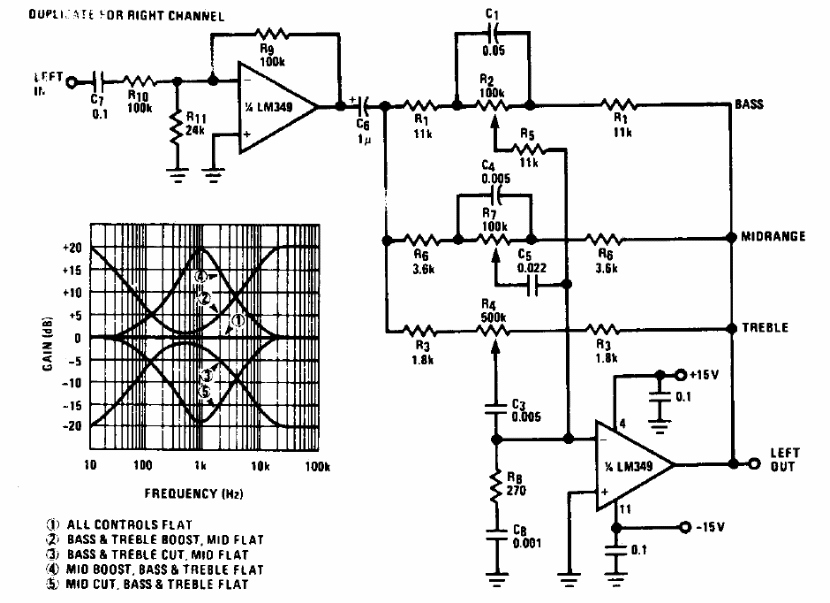

This tone control was obtained in the Audio Handbook of the National Semiconductor of 1977. The circuit controls the signals of medium frequencies in a wide dynamic range as shown in the diagram.




| Clique na imagem para ampliar |
