Current Amplifier (CB13747E)

Details
Written by: Newton C. Braga

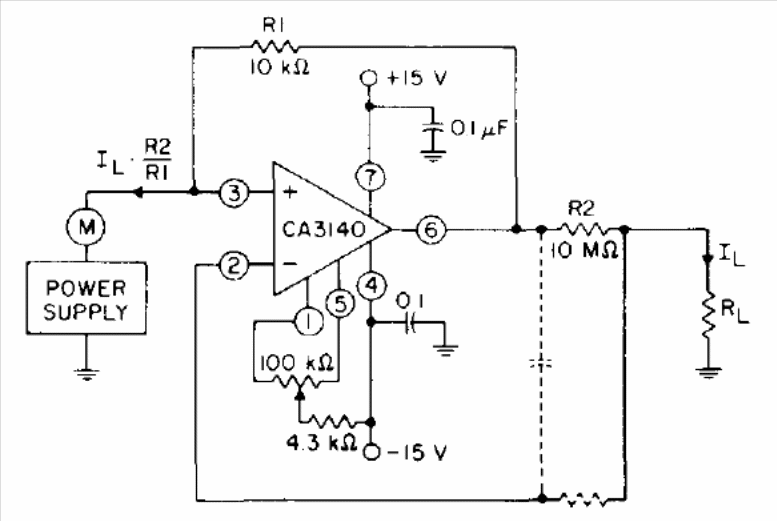

We found this circuit in the 1977 RCA Solid State ICs. The circuit consists of a current amplifier with a gain of 1000. The supply must be made from a symmetrical source.




| Clique na imagem para ampliar |
