Keyboard Hexadecimal Encoder (CB13763E)

Details
Written by: Newton C. Braga

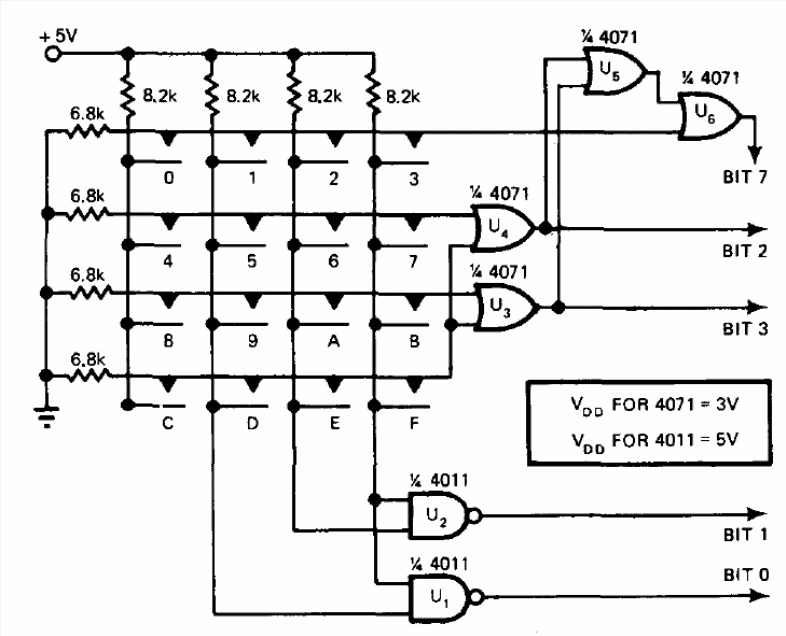

We found this CMOS circuit in a 1978 publication. It allows you to use a standard calculator keyboard with 16 keys for encoding in hexadecimal.
