Bidirectional Motor Control LM12 (CB14390E)

Details
Written by: Newton C. Braga

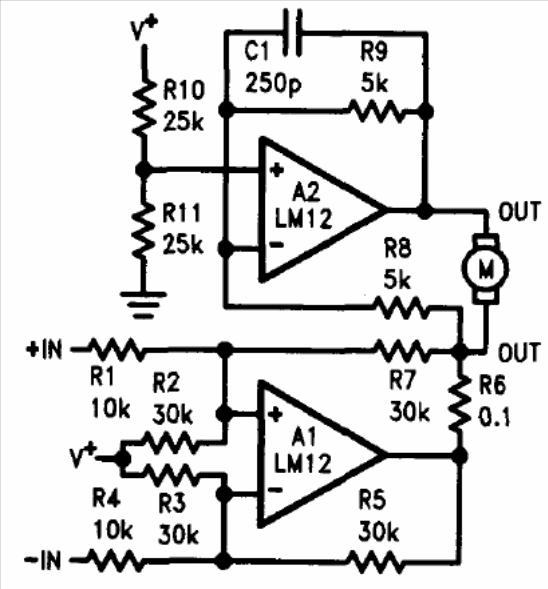

The LM12 integrated circuit can control motors up to 4 A in the configuration indicated by National Semiconductor in its 1994 Linear Applications Handbook. The LM12 is a power operational not easy to obtain.
