Humidity Alarm (CB13746E)

Details
Written by: Newton C. Braga

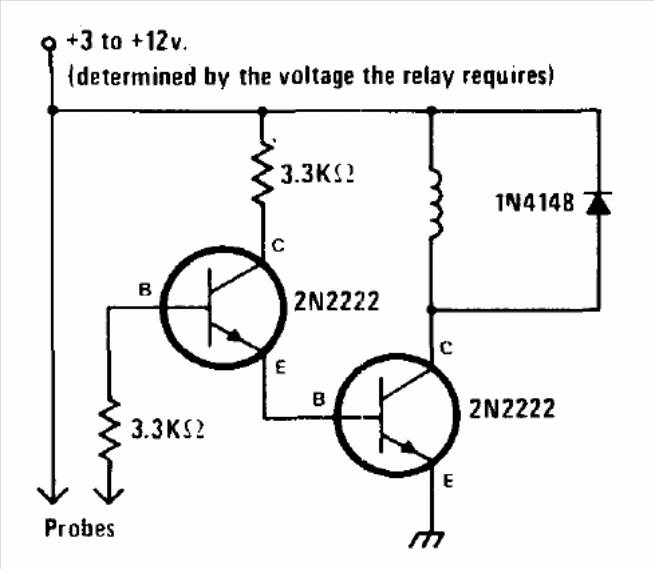

The sensors of this liquid alarm are formed by two pieces of wire with the ends peeled off. The relay depends on the supply voltage that can be between 3 and 12 V. The transistors can also be the BC548.
