Photodiode Saturable Amplifier (CB14076E)

Details
Written by: Newton C. Braga

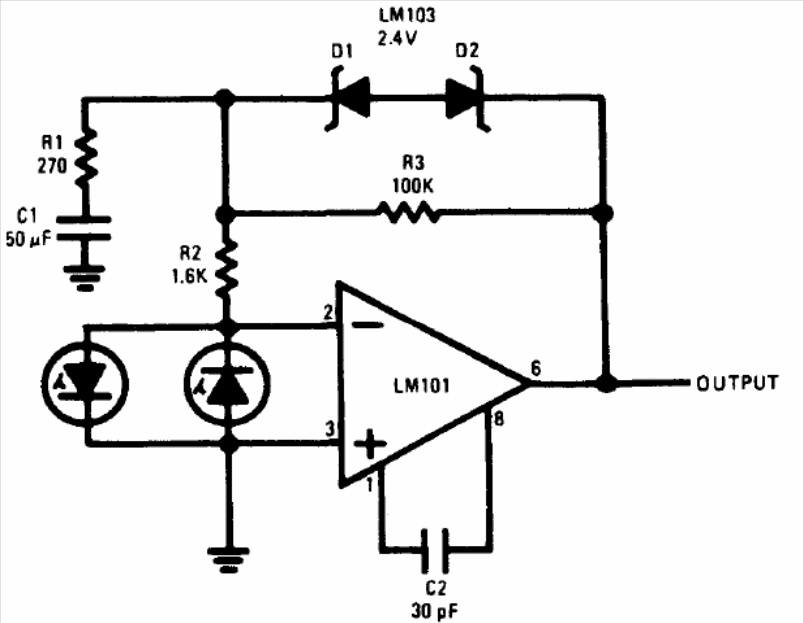

This circuit is from the Linear Applications Handbook of the National Semiconductor of 1994. The zener diodes in opposition determine the saturation voltage of the circuit. The power supply must be symmetrical and other operational ones can be used.




| Clique na imagem para ampliar |
