Battery Charge Indicator LM10 (CB14325E)

Details
Written by: Newton C. Braga

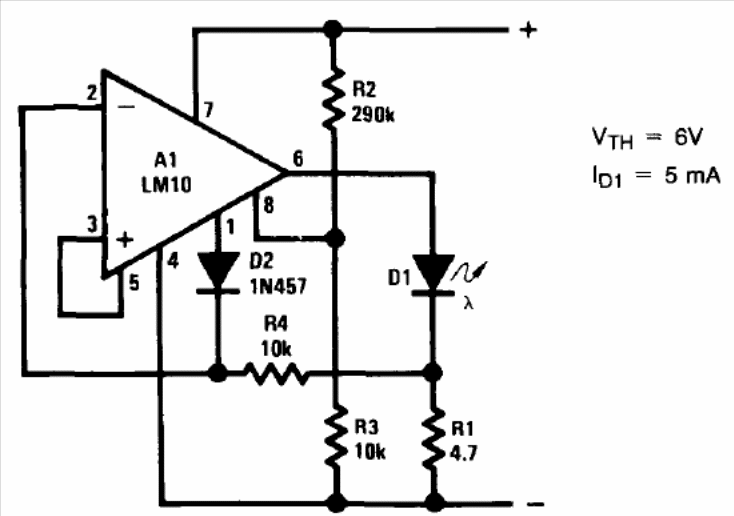

We found this circuit in a 1994 Linear Applications Handbook by National Semiconductor. The LM10 is not common today, but we can adapt the circuit to operate with more modern operational amplifiers.
