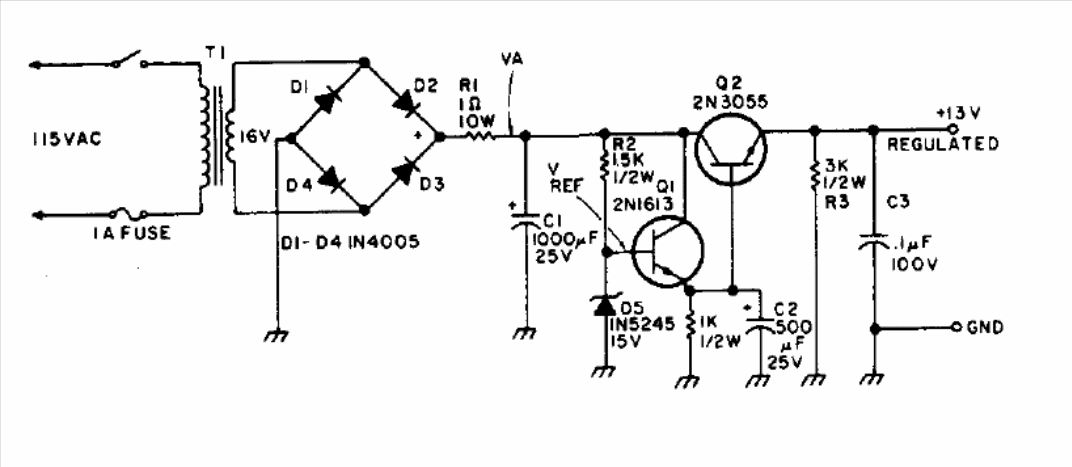

This circuit is from an old documentation but can be implemented with a BD136 for Q1 and 2N3055 for Q2. Q2 must be equipped with a heat radiator and the bridge diodes can be 1N4004. The transformer has a 2 A secondary.
