Power On Reset (CB13779E)

Details
Written by: Newton C. Braga

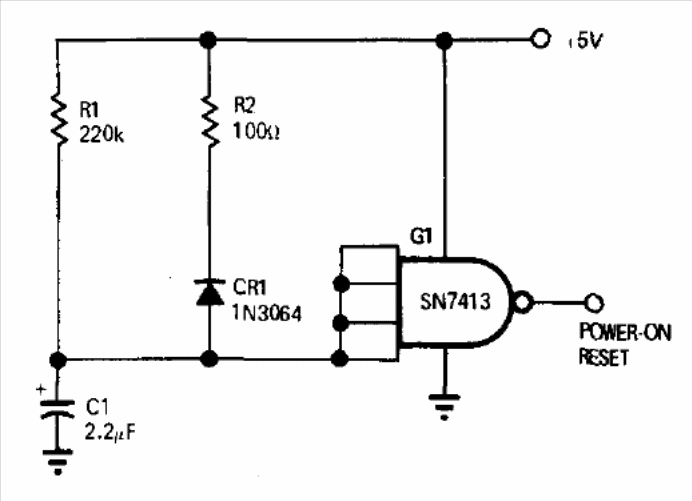

The circuit shown is used to reset TTL logic when power is established. The circuit uses a 7413 and must be powered by 5 V. The circuit can be adapted to work with microcontrolled applications.




| Clique na imagem para ampliar |
