Rectangular Signal Generator LM139 (CB14231E)

Details
Written by: Newton C. Braga

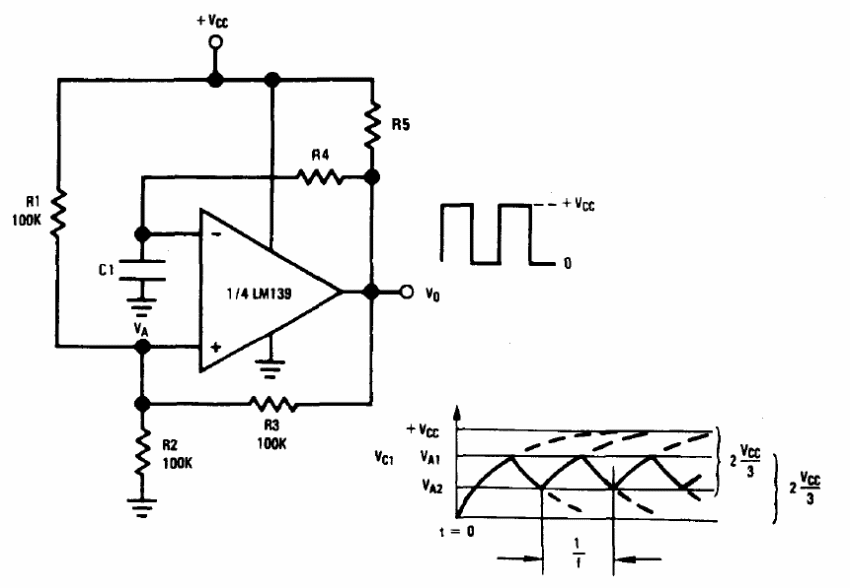

We found this circuit in the Linear Applications Handbook by National Semiconductor. The circuit uses one of the LM139's four comparators and does not need a symmetrical source. The frequency depends on R4, R5 and the capacitor.




| Clique na imagem para ampliar |
