Siren with the LM3909 (CB14289E)

Details
Written by: Newton C. Braga

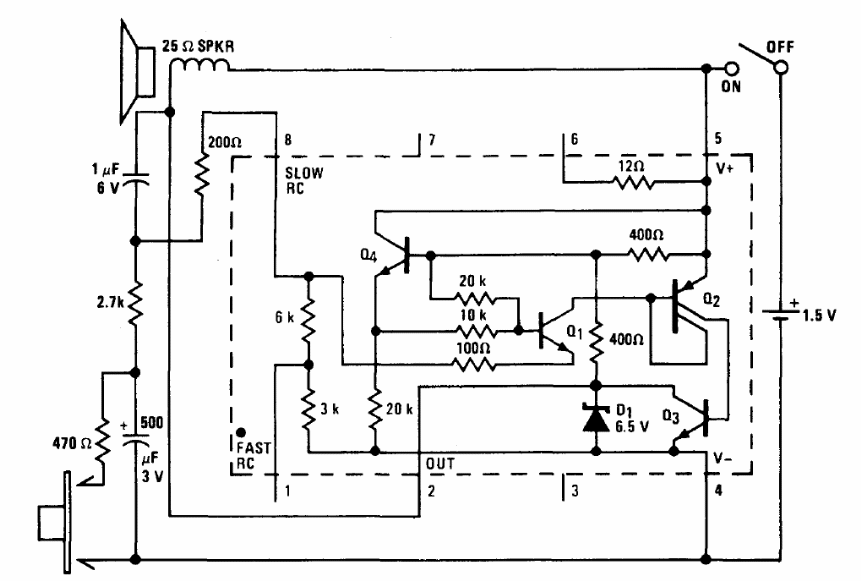

The circuit below is suggested by National Semiconductor in technical documentation on the LM3909. The circuit is powered by a single battery and has a very low consumption.
