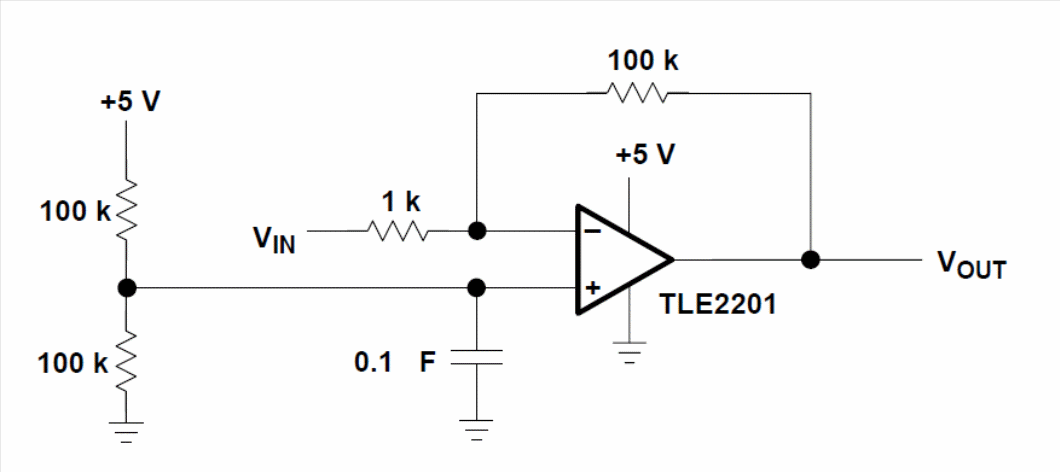

This circuit was obtained from a technical documentation from Texas Instruments. The TLE2201 is used in it, but the circuit can employ other operating systems with similar characteristics. The power supply does not have to be symmetrical.
