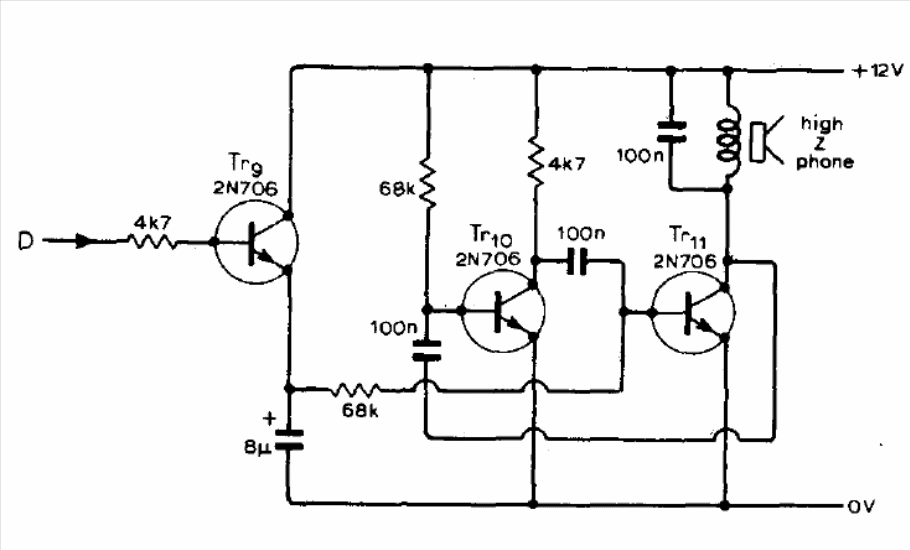

In the original 1974 publication, this circuit is indicated as an audible timer alarm. The transistors can be the BC548 and the circuit can be used for activation by digital logic or sensors in several applications such as alarms, timers, indicators, etc.
