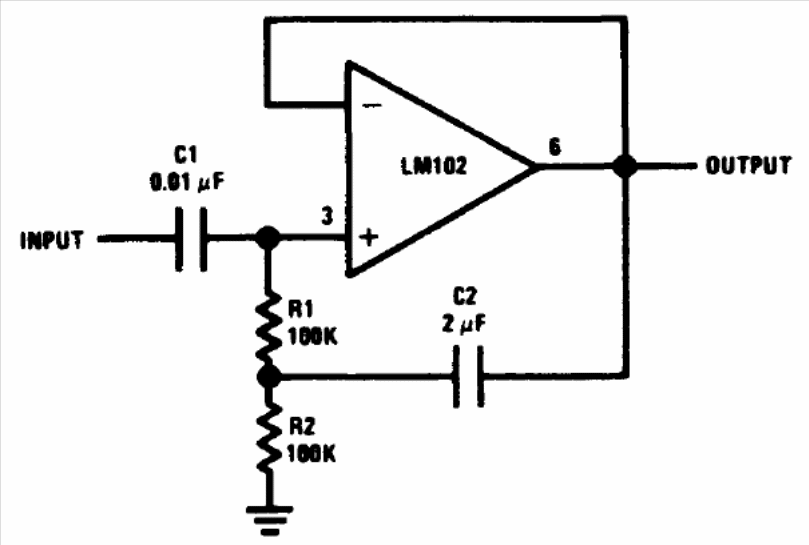

The circuit shown was found in the 1994 National Semiconductor's Linear Application Handbook. The op amp admits equivalents and the power supply must be symmetrical.
| Clique na imagem para ampliar |
High Input Impedance AC Follower (CB14137E)
- Details
- Written by: Newton C. Braga
