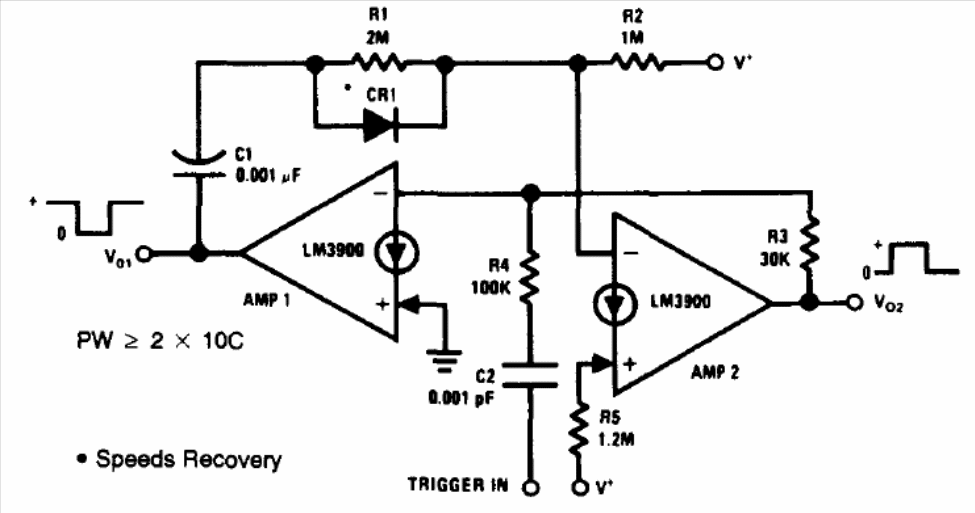

The configuration below is suggested by the National Semiconductor Linear Applications Handbook. The base is a operational transconductance amplifier. The output time at the high level is given by C1.
| Clique na imagem para ampliar |
Monostable with LM3900 (CB14205E)
- Details
- Written by: Newton C. Braga
