1 A Voltage Follower LM195 (CB14268E)

Details
Written by: Newton C. Braga

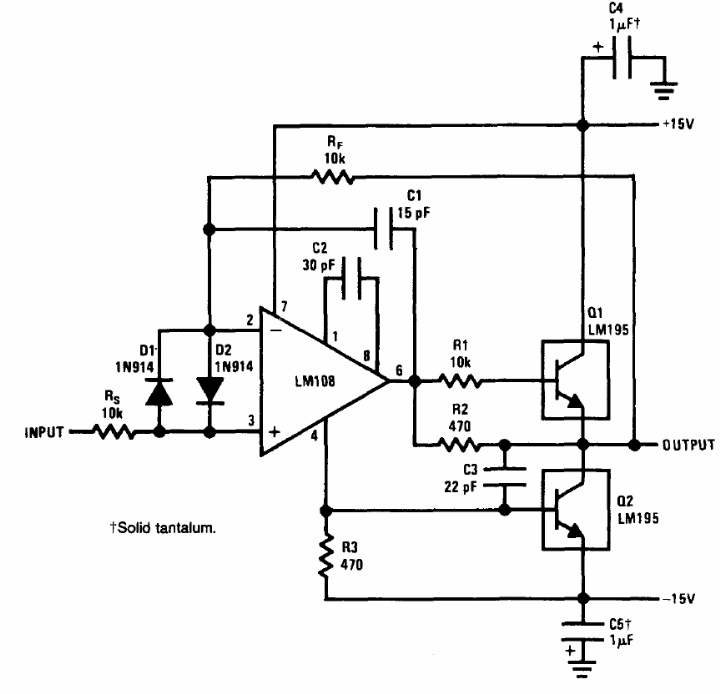

This circuit makes use of a special LM195 power transistor not very easy to obtain. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor.




| Clique na imagem para ampliar |
