The circuit is from the 1994 National Semiconductor Linear Applications Handbook but can be implemented with more modern operational amplifiers. R3 and R1 determine the gain and the power supply must be symmetrical.
| Clique na imagem para ampliar |

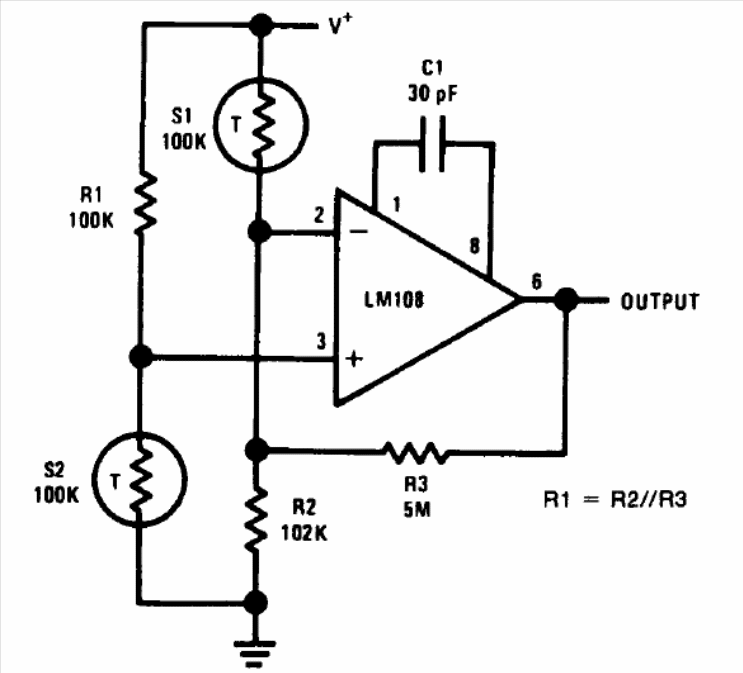

Transducer Differential Amplifier (CB14091E)
- Details
- Written by: Newton C. Braga
